Pilot regulator
3" Connection


Volume Booster - Pilot regulator
with high volume flow, the ratio is 1:1
the max. inlet pressure is 21 bar, the range is 0,2... 18 bar.
max. flow is 110.000 l/min


For March we offer a special discount of 50%

Catalogpage download

Customer discounts are not valid for speacial offers !

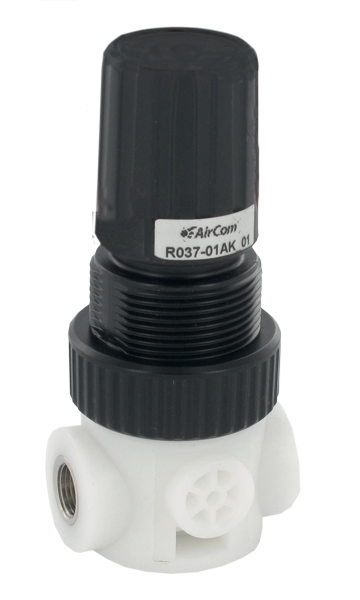

Miniatur regulator
 made of FDA approved materials

Diaphragm miniature pressure regulator made of plastic and
of small and lightweight design. All fluid-contact parts are approved by
the FDA. Application aera food industry and water circulation, e.g. for
dialysis devices. For compressed air, non-corrosive gases and liquids
Supply pressure max. 12 bar, Relieving function non-relieving
Gauge port not available Temperature range 0 °C to 50 °C / 32 °F to 122 °F

Special discount for November 35%

Cataloquepage download

Customer discounts are not valid for speacial offers !

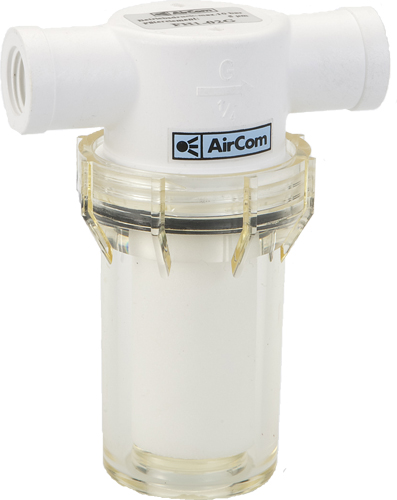

Plastic Filter FH
optional with FDA approval

Filter made of plastic for compressed air, vacuum, non-corrosive gases or liquids.
The flow on the filter elements passes from outside to inside.
They are largely corrosion-resistant and feature excellent chemical stability.
Optionally available with EPDM elastomers by the FDA.
Filter element 5 µm, 35 µm and 80 µm made of PE,
50 µm, 100 µm and 300 µm made of stainless steel
without drain, as no water separation occurs with compressed air
max. 10 bar at 24 °C / 75 °F, Temperature range 5 °C to 52 °C / 41 °F to 125 °F


Special discount for October  50%

Cataloquepage download

Customer discounts are not valid for speacial offers !
